Technical Specifications

Parameter	Details
Gauge	Supports 16 - gauge and 18 - gauge fasteners. 16 - gauge nails are thicker and stronger for substantial projects; 18 - gauge nails and staples are thinner for finer work.
Fastener Sizes	Can drive 16 - gauge 1 - 1/4 - inch to 2 - 1/2 - inch finishing nails, 18 - gauge 5/8 - inch to 2 - inch brad nails, and 18 - gauge 5/8 - inch to 1 - 1/2 - inch narrow - crown staples.
Air Consumption	Economical air consumption of 1 cfm @ 90 psi for efficient operation with low compressed air usage.
Working Pressure	Working pressure range of 70 - 100 psi to provide sufficient power for driving nails and staples into different materials.
Magazine Capacity	Magazine typically has a large capacity of about 100 fasteners, reducing reloading frequency.
Tool Dimensions and Weight	Height: 11 - 3/4 inches; Length: 12 - 1/2 inches; Width: 3 inches; Weight: 4.8 lb, which is relatively lightweight and easy to handle.

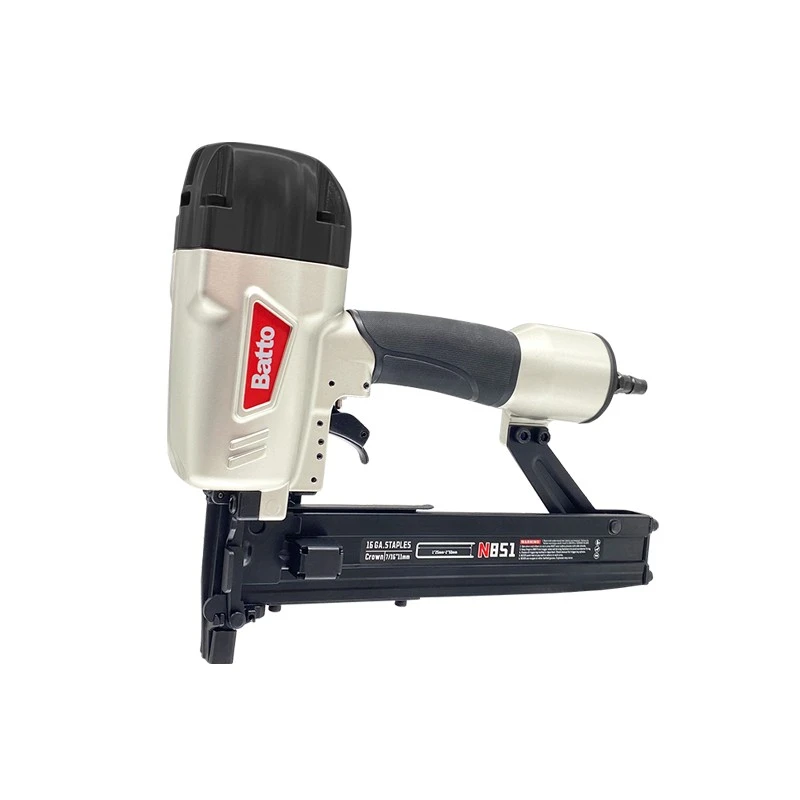

N851 Industrial Staple Gun - 30% Faster Upholstery & Pallet Securing

Specially designed for heavy-duty staples up to 8mm in diameter, the N851 delivers powerful and stable driving force with advanced pneumatic technology. Operating at 5–7 Kg/cm² (70–100 psi), it easily secures thick fabrics, leather, and multiple wooden layers for lasting results in upholstery and pallet packaging.

√Large Capacity Magazine: Holds up to 100 staples for uninterrupted operation.

√Precision and Depth Control: Accurate staple placement and adjustable depth for different materials.

√Ergonomic Grip: Anti-slip design reduces fatigue, ensuring comfort during long shifts.

√Enhanced Safety: Features a dust cover and emergency stop button for reliable protection.

Feature	Description
18GA Heavy-duty Wire Nails	40% stronger penetration than competitors
Nail Cycle Speed	0.3 seconds per nail ▸ Faster than the industry average of 0.5 seconds
IP54 Protection Rating	Suitable for environments with wood chips and dust

Dual-Mode Operating System

Soft Package Mode:
Air pressure: 0.4–0.6 MPa (for non-penetration of fabric materials)
Special buffer-designed firing pin (Patent No. US2024N851)

Pallet Mode:
Air pressure: 0.8–1.0 MPa (penetrates 5-layer corrugated cardboard directly)
Optional titanium alloy firing pin (add-on: +$15)

Versatile Applications

●Ideal for furniture upholstery, automotive interiors, ship interiors, and all types of pallet assembly and reinforcement, ensuring durability and efficiency in every project.

●Easy Maintenance:

Simple daily cleaning and regular lubrication keep the N851 in peak condition, extending service life and ensuring continuous high performance.
